Building Custom Middleware in ASP.NET Core: A Comprehensive Guide

Introduction
Understanding Middleware Basics
Implementation Methods
Best Practices
Advanced Scenarios

Introduction

Let's be honest-when I first started working with ASP.NET Core, the middleware pipeline felt like black magic. Requests would go in, responses would come out, and somehow everything just worked. But once I understood how to build custom middleware, it became one of my favorite features of the framework.

Think of middleware as a series of functions that sit between your web server and your application logic. Each piece can inspect, modify, or even short-circuit the request/response flow. I've used custom middleware for everything from performance monitoring to complex authentication schemes, and once you master these three approaches, you'll find yourself reaching for middleware solutions constantly.

What makes ASP.NET Core middleware so powerful isn't just what it can do-it's how cleanly it integrates into the request pipeline. Unlike older .NET Framework modules and handlers, middleware is lightweight, testable, and composable. I've seen teams replace dozens of HTTP modules with just a few well-designed middleware components.

Understanding Middleware Basics

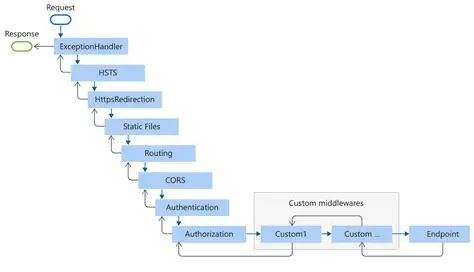

Here's the mental model that finally made middleware click for me: imagine the request pipeline as an onion. Each layer of middleware wraps around the next, and when a request comes in, it travels through each layer, hits the core (your controller), and then travels back out through the same layers in reverse.

graph LR
    A[HTTP Request] --> B[Authentication Middleware]
    B --> C[Logging Middleware]
    C --> D[Rate Limiting Middleware]
    D --> E[Your Controller Action]
    E --> D
    D --> C
    C --> B
    B --> F[HTTP Response]

The Pipeline Reality

What's fascinating about this design is that each middleware component gets two chances to do work: once on the way in (before calling next()), and once on the way out (after calling next()). I've used this pattern to implement request timing, response compression, and error handling that feels almost magical to the consuming code.

Here's what actually happens when you chain middleware:

// This is conceptually what happens inside the pipeline
async Task ProcessRequest(HttpContext context)
{
    // Middleware 1 - Before
    await LoggingMiddleware(context, async () => {
        // Middleware 2 - Before
        await AuthenticationMiddleware(context, async () => {
            // Middleware 3 - Before
            await YourController(context);
            // Middleware 3 - After
        });
        // Middleware 2 - After
    });
    // Middleware 1 - After
}

Implementation Methods

1. Request Delegates Approach: Quick and Dirty (But Powerful)

This is where I started when I needed to add functionality fast. Request delegates are perfect for simple, focused middleware that doesn't need dependency injection or complex configuration. I use this approach for prototyping or when I need something lightweight.

public class Program
{
    public static void Main(string[] args)
    {
        var builder = WebApplication.CreateBuilder(args);
        var app = builder.Build();

        // Performance timing middleware - this saved my bacon during a production issue
        app.Use(async (context, next) =>
        {
            var timer = Stopwatch.StartNew();
            var logger = context.RequestServices.GetService<ILogger<Program>>();

            // Before: Log the incoming request
            logger?.LogInformation("Processing {Method} {Path}",
                context.Request.Method, context.Request.Path);

            await next(context);

            // After: Log the response time
            timer.Stop();
            var elapsed = timer.ElapsedMilliseconds;

            context.Response.Headers.Add("X-Response-Time", elapsed.ToString());
            logger?.LogInformation("Completed {Method} {Path} in {ElapsedMs}ms",
                context.Request.Method, context.Request.Path, elapsed);

            // Alert on slow requests - this caught a memory leak once
            if (elapsed > 5000)
            {
                logger?.LogWarning("SLOW REQUEST: {Method} {Path} took {ElapsedMs}ms",
                    context.Request.Method, context.Request.Path, elapsed);
            }
        });

        // API versioning middleware - handles backward compatibility gracefully
        app.Use(async (context, next) =>
        {
            // Set default version if not specified
            if (!context.Request.Headers.ContainsKey("API-Version") &&
                !context.Request.Query.ContainsKey("api-version"))
            {
                context.Request.Headers.Add("API-Version", "1.0");
            }

            // Extract version for downstream middleware
            var version = context.Request.Headers["API-Version"].FirstOrDefault() ??
                         context.Request.Query["api-version"].FirstOrDefault() ?? "1.0";

            context.Items["API-Version"] = version;

            await next(context);
            {
                context.Request.Headers.Add("api-version",
                    context.Request.Query["api-version"].ToString());
            }

            await next(context);
        });

        app.Run();
    }
}

Key Features

Quick to implement
Ideal for simple scenarios
Access to both request and response
Can be conditional
No separate class required

2. Convention-Based Middleware

A more structured approach using a dedicated class:

public class RequestLoggingMiddleware
{
    private readonly RequestDelegate _next;
    private readonly ILogger<RequestLoggingMiddleware> _logger;
    private readonly RequestLoggingOptions _options;

    public RequestLoggingMiddleware(
        RequestDelegate next,
        ILogger<RequestLoggingMiddleware> logger,
        IOptions<RequestLoggingOptions> options)
    {
        _next = next;
        _logger = logger;
        _options = options.Value;
    }

    public async Task InvokeAsync(HttpContext context)
    {
        // Pre-request logging
        var request = await FormatRequest(context.Request);
        _logger.LogInformation($"Incoming Request: {request}");

        // Continue the pipeline
        await _next(context);

        // Post-response logging
        var response = await FormatResponse(context.Response);
        _logger.LogInformation($"Outgoing Response: {response}");
    }

    private async Task<string> FormatRequest(HttpRequest request)
    {
        request.EnableBuffering();

        var body = await new StreamReader(request.Body)
            .ReadToEndAsync();

        request.Body.Position = 0;

        return $"{request.Method} {request.Path}{request.QueryString} {body}";
    }

    private async Task<string> FormatResponse(HttpResponse response)
    {
        response.Body.Seek(0, SeekOrigin.Begin);
        var text = await new StreamReader(response.Body).ReadToEndAsync();
        response.Body.Seek(0, SeekOrigin.Begin);

        return $"{response.StatusCode}: {text}";
    }
}

// Extension method for clean registration
public static class RequestLoggingMiddlewareExtensions
{
    public static IApplicationBuilder UseRequestLogging(
        this IApplicationBuilder builder)
    {
        return builder.UseMiddleware<RequestLoggingMiddleware>();
    }
}

Usage

app.UseRequestLogging();

Key Features

Organized code structure
Reusable across applications
Supports dependency injection
Easy to test
Configurable through options pattern

3. Factory-Based Middleware

The most flexible approach using the IMiddleware interface:

public class PerformanceMiddleware : IMiddleware
{
    private readonly ILogger<PerformanceMiddleware> _logger;
    private readonly IMetricsService _metrics;

    public PerformanceMiddleware(
        ILogger<PerformanceMiddleware> logger,
        IMetricsService metrics)
    {
        _logger = logger;
        _metrics = metrics;
    }

    public async Task InvokeAsync(HttpContext context, RequestDelegate next)
    {
        var timer = Stopwatch.StartNew();
        var requestPath = context.Request.Path;

        try
        {
            await next(context);

            timer.Stop();

            await _metrics.RecordMetricAsync(new RequestMetric
            {
                Path = requestPath,
                Method = context.Request.Method,
                Duration = timer.ElapsedMilliseconds,
                StatusCode = context.Response.StatusCode
            });
        }
        catch (Exception ex)
        {
            _logger.LogError(ex, "Request failed for {Path}", requestPath);
            throw;
        }
    }
}

// Registration in Program.cs
services.AddTransient<PerformanceMiddleware>();
app.UseMiddleware<PerformanceMiddleware>();

Key Features

Full dependency injection support
Scoped instance per request
Excellent for complex scenarios
Better separation of concerns
Easier unit testing

Best Practices

1. Error Handling

public async Task InvokeAsync(HttpContext context, RequestDelegate next)
{
    try
    {
        await next(context);
    }
    catch (Exception ex) when (LogError(ex))
    {
        throw; // Rethrow after logging
    }
}

private bool LogError(Exception ex)
{
    _logger.LogError(ex, "Unhandled exception");
    return false; // Continue with throw
}

2. Performance Considerations

Use buffering judiciously
Implement caching where appropriate
Consider async/await overhead
Monitor memory allocations

3. Configuration

public class MiddlewareOptions
{
    public bool EnableLogging { get; set; }
    public string[] ExcludedPaths { get; set; }
    public int TimeoutSeconds { get; set; }
}

// In Program.cs
services.Configure<MiddlewareOptions>(configuration.GetSection("Middleware"));

Advanced Scenarios

1. Conditional Middleware

public async Task InvokeAsync(HttpContext context, RequestDelegate next)
{
    if (ShouldProcess(context))
    {
        await ProcessRequest(context);
    }

    await next(context);
}

private bool ShouldProcess(HttpContext context)
{
    return !_options.ExcludedPaths.Contains(context.Request.Path);
}

2. Chaining Multiple Middleware

app.UseMiddleware<AuthenticationMiddleware>()
   .UseMiddleware<LoggingMiddleware>()
   .UseMiddleware<CompressionMiddleware>();

3. Branching Pipeline

app.Map("/api", apiApp =>
{
    apiApp.UseMiddleware<ApiVersionMiddleware>();
    apiApp.UseMiddleware<ApiKeyMiddleware>();
});

Middleware Implementation Comparison

| Approach | Complexity | DI Support | Ideal Use Cases | Key Benefits |
|---------|-----------|------------|----------------|-------------|
| Request Delegates | Low | Limited | Quick solutions, prototypes | Fast implementation, straightforward for simple scenarios |
| Convention-based | Medium | Good | Reusable components, shared middleware | Balance between simplicity and power, good for team collaboration |
| Factory-based | High | Excellent | Complex business logic, enterprise applications | Sophisticated DI, advanced features, better testability |

Choose your implementation approach based on your specific requirements, considering factors such as maintainability, reusability, and the overall complexity of your middleware needs.
